Product features

    1. The section height of the boom is increased, which greatly reduces the deflection of the boom at a large working radius, and improves the load-bearing telescopic capacity;

    2. The arm tube adopts 4 hexagonal welds, and the upper and lower overlap structure, the structure strength is greater, and the safety factor is higher;

    3. The large-span rear outrigger improves the stability of the vehicle and the lifting capacity in the middle and long boom;

            4. The main valve adopts manual proportional multi-way valve to realize compound action and improve operation efficiency;

    5. Integrated control panel (engine start and stop, etc.), the operation is simpler and more reliable;

    6. The winch adopts a high-speed, double-balance valve structure, and low-speed operation is more stable;

    7. The working range and lifting capacity are better than similar products;

    8. Standard radiator for all series;

    Provide 100% qualified products and consolidate domestic and foreign markets with "four services"

    Product parameters：

    Max Lifting Capacity（kg）:8000

    Max Lifting Moment（kN.m）:200

    Max length of working arm（m）:14.3

    Max Working Height(m)：15.5 :（To the crane installation）

    Boom elevation range(°):0-75

    Slewing angle(°):360

    Outrigger span（m）:5.95

    Rated work flow（L／min）:60

    Weight（kg）: 300

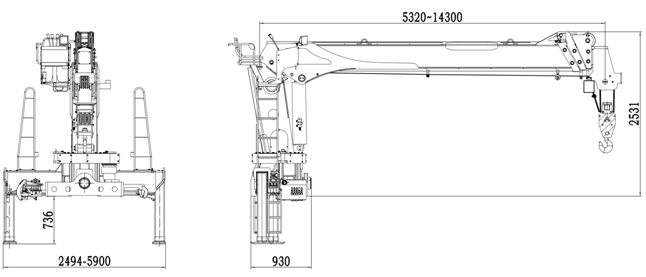

    Installation dimensions figure:
