Product features：

1. The section height of the boom is increased, which greatly reduces the deflection of the boom at a large working radius, and improves the load-bearing telescopic capacity;

2. The arm tube adopts 4 hexagonal welds, and the upper and lower overlap structure, the structure strength is greater, and the safety factor is higher;

3. The large-span rear outrigger improves the stability of the vehicle and the lifting capacity in the middle and long boom;

4. The main valve adopts manual proportional multi-way valve to realize compound action and improve operation efficiency;

5. Integrated control panel (engine start and stop, etc.), the operation is simpler and more reliable;

6. The winch adopts a high-speed, double-balance valve structure, and low-speed operation is more stable;

7. The working range and lifting capacity are better than similar products;

8. Standard radiator for all series;

Provide 100% qualified products and consolidate domestic and foreign markets with "four services"

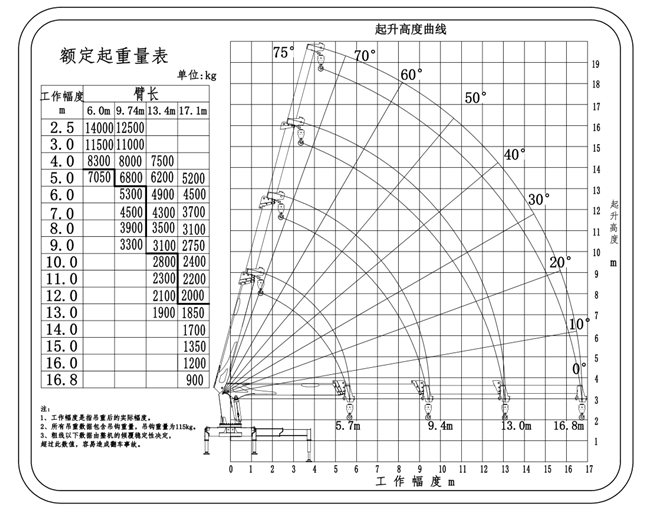

The main technical parameters and performance metrics：

Max Lifting Capacity（kg）:14000

Max Lifting Moment（kN.m）:360

Max length of working arm（m）:17.1

Working Height(m)：18（To the crane installation）

Boom elevation range(°):0-75

Slewing angle(°):360

Outrigger span（m）:7.7

Rated work flow（L／min）:63+40

Weight（kg）: 5600

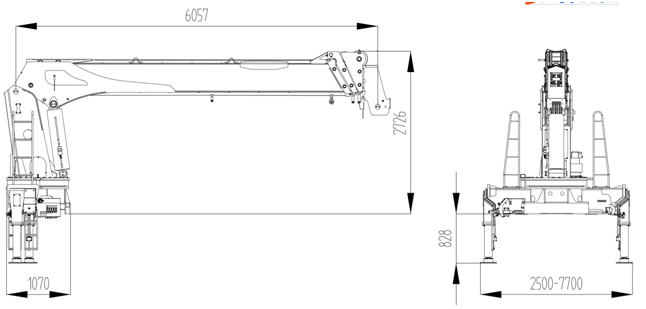

Installation dimensions figure:
